ICON 2022+ Toyota Tundra 2.5 Series VS RR CDCV Coilover Kit

Free shipping

$1,917.99

SKU: 58770C

3 in stock

30-Day Money-Back Guarantee

Easy returns

Warranty covered

Product description

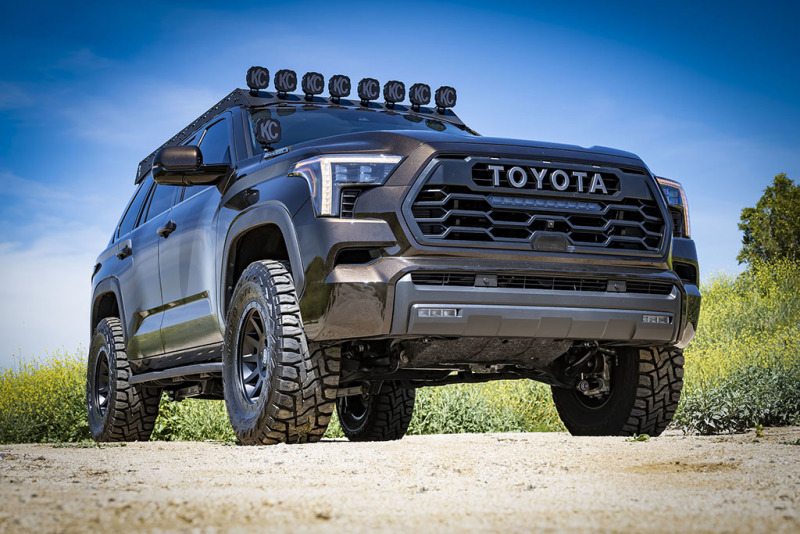

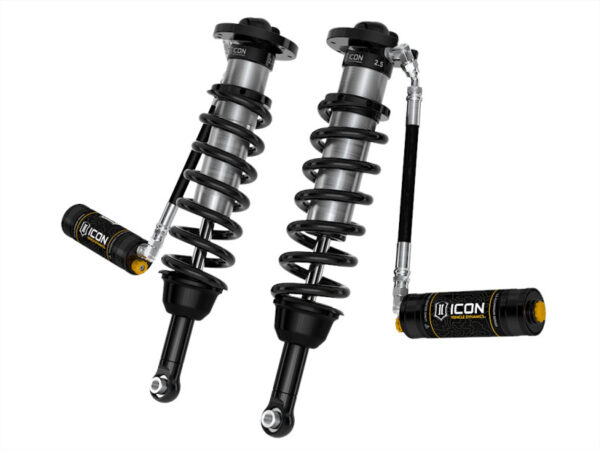

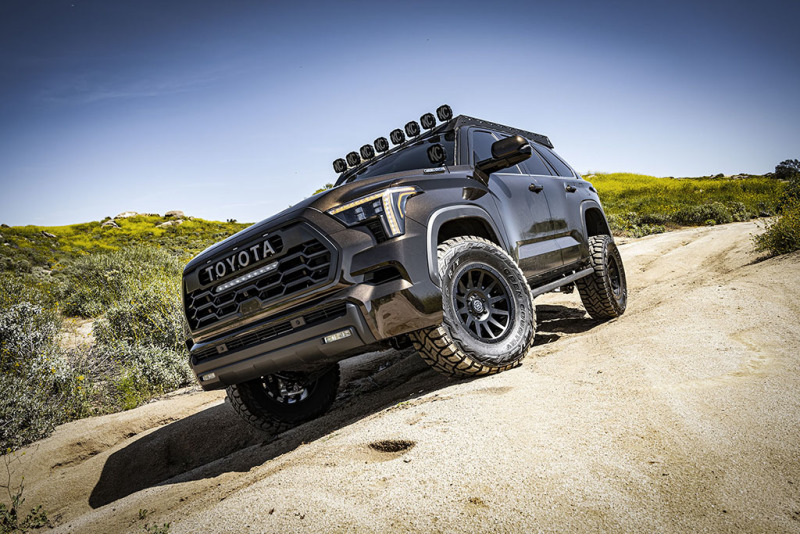

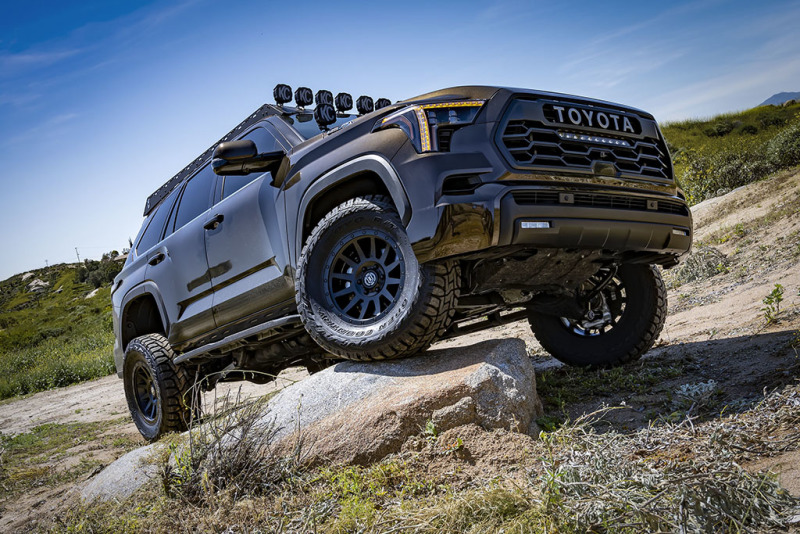

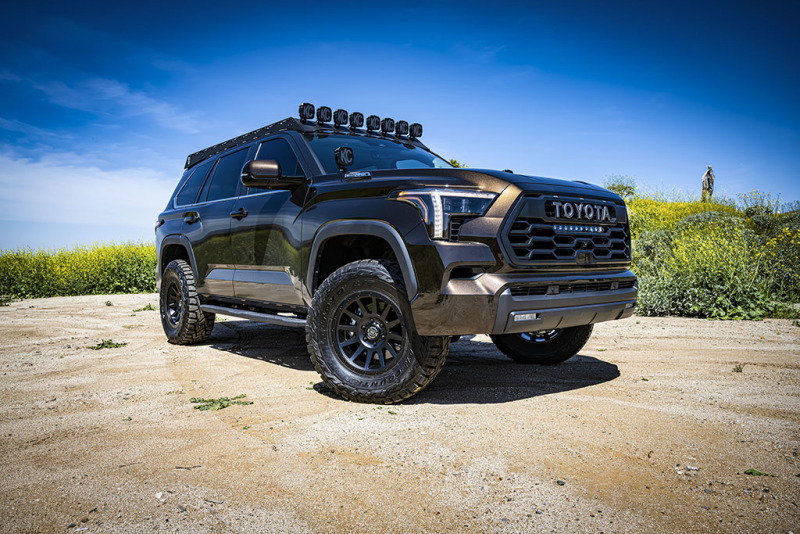

ICON 2022-2024 Toyota Tundra 1.25-3.5″ Lift/2023-2024 Sequoia 3-4.5″ Lift, V.S. 2.5 Series Front Coilover Kit, Remote Reservoir w/ CDCV, Pair

Overview

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2024 Toyota Tundra or 2023-2024 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on Tundra or 3.5-4.5″ of front lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON’s exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.

Features & Benefits

Increased wheel travel and improved ride quality over stock
Vehicle specific tuned for superior shock damping and control
Adjustable up to 1.25-3.5″ of front lift height over stock on Tundra or 3-4.5″ of front lift on Sequoia
Remote reservoirs maintain cooler operating temperatures during extended off-road use
ICON CDCV equipped for 10 settings of external compression damping adjustment
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8″ diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable

Tech Info:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys – 18×9″ with 6.00” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35″ x 12.50″ (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
APPLICATION NOTE #146: Tundra SR5 Equipped With TRD Sport Package Lift Range Will Be 2.25-4.5″
APPLICATION NOTE #148: ICON Does Not Recommend Lifting Above 2.25″ (Tundra)/3.75″ (Sequoia) Without An ICON Upper Control Arm, Failure To Do So Can Result In Improper Wheel Alignment And Cause Damage To Front Axles On 4WD Models
APPLICATION NOTE #149: For 4WD Models Without TRD Off-Road Package ICON Recommends Using ICON Diff Drop (Part# 55156) Or Using Toyota Trd Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For TRD Pro.
APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
APPLICATION NOTE #188: Not compatible with Sequoia TRD Pro stock front upper control arms. ICON Delta Joint Pro UCAs (part number 58461DJ or 58561DJ) are required for Sequoia TRD Pro fitment.
TECH NOTE: If upgrading a vehicle equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.5″ over stock
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-3″ over stock
TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.75″ over stock
TECH NOTE: Most Sequoia sub-models will have front lift height range of 3-4.5″ over stock. Submodels equipped with TRD Off-Road Package or TRD Pro will have front lift height range of 1-2.5″ over stock.
TECH NOTE: Tundra lift heights above 2.25” require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia. When installing 55154 on model equipped with TRD Off-Road package or TRD Pro, part number 55164 is also required.

Vehicle Applications

Toyota Sequoia Capstone 2023 to 2024
Toyota Sequoia Limited 2023 to 2024
Toyota Sequoia Platinum 2023 to 2024
Toyota Sequoia SR5 2023 to 2024
Toyota Sequoia TRD Pro 2023 to 2024
Toyota Tundra 1794 Edition 2022 to 2024
Toyota Tundra Capstone 2022 to 2024
Toyota Tundra Limited 2022 to 2024
Toyota Tundra Platinum 2022 to 2024
Toyota Tundra SR 2022 to 2024
Toyota Tundra SR5 2022 to 2024
Toyota Tundra TRD Pro 2022 to 2024

Specifications

Part number

58770C

Brand

Dimensions

26.7 × 13.1 × 9.9 in

Weight

59.6 lbs

Lift Kits, Suspension & Shocks

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2024 Toyota Tundra or 2023-2024 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5a*? of lift height adjustability on Tundra or 3.5-4.5″ of front lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICONa**s Vehicle-specific shock length and valving along with the larger 2.5a*? shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON’s exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
ICONa**s Vehicle-specific shock length and valving along with the larger 2.5a*? shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
TECH NOTE: Tundra lift heights above 2.25a*? require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia. When installing 55154 on model equipped with TRD Off-Road package or TRD Pro, part number 55164 is also required.

Fitment:
Toyota Sequoia Capstone 2023 to 2024
Toyota Sequoia Limited 2023 to 2024
Toyota Sequoia Platinum 2023 to 2024
Toyota Sequoia SR5 2023 to 2024
Toyota Sequoia TRD Pro 2023 to 2024
Toyota Tundra 1794 Edition 2022 to 2024
Toyota Tundra Capstone 2022 to 2024
Toyota Tundra Limited 2022 to 2024
Toyota Tundra Platinum 2022 to 2024
Toyota Tundra SR 2022 to 2024
Toyota Tundra SR5 2022 to 2024
Toyota Tundra TRD Pro 2022 to 2024
