RAM 1500 NEW BODY 19-24 V8 5.7 2.0 Performance Series IFP Coilover Shock (Alum) / 0-2in. Lift Fox – 985-02-136

Free shipping

$599.95

SKU: 985-02-136

20 in stock

Apple Pay
Visa
American Express
Mastercard
Diners Club
Discover
Google Pay

30-Day Money-Back Guarantee

Easy returns

Warranty covered

Product description

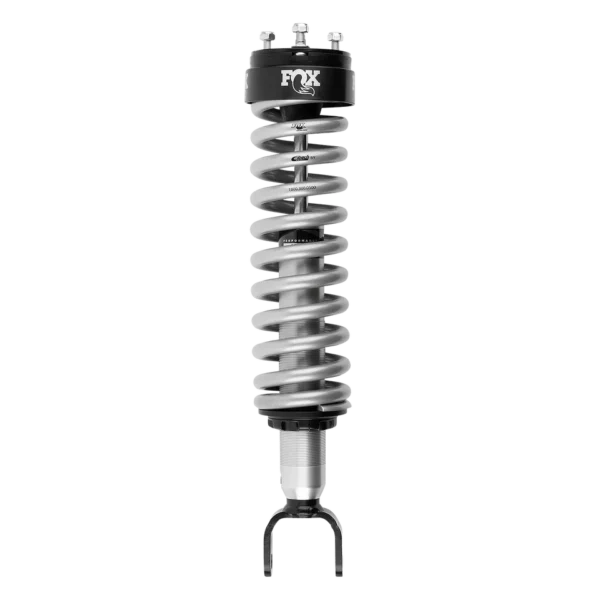

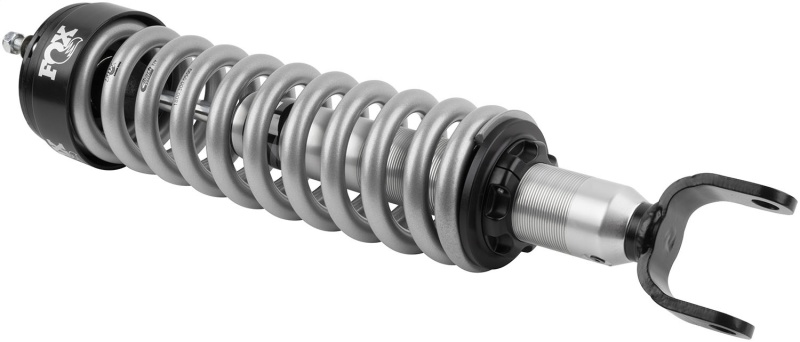

Fox 19+ Ram 1500 4WD 2.0 Performance Series IFP Coilover Shock (Alum) / 0-2in. Lift

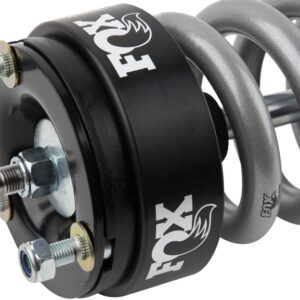

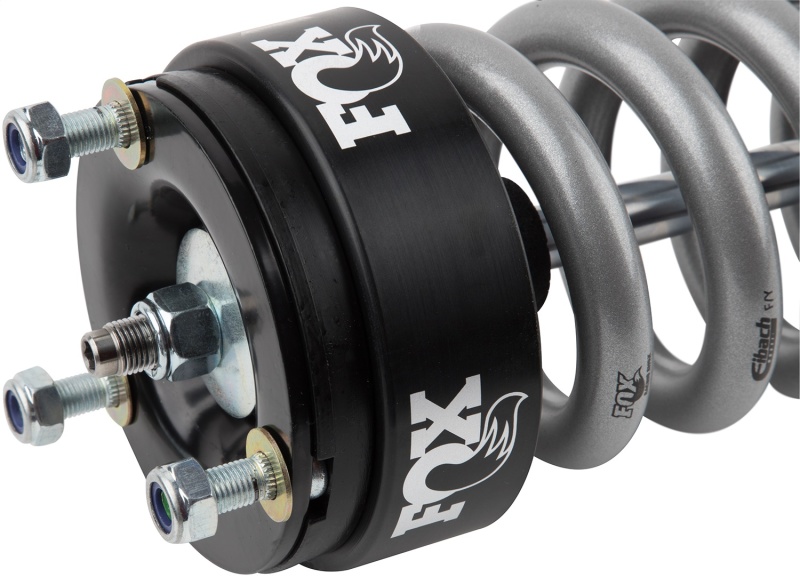

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

PART NUMBER 985-02-136
FEATURES Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; IFP Separates Oil From High-Pressure Nitrogen Gas; Black Anodized CNC Machined Aluminum Components
SERIES Performance
TRAVEL 5.39
FRONT LIFT HEIGHT 0-2
BODY 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
BODY PLATING Clear-anodized for a durable finish
COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
SHAFT 5/8″ hard chrome plated heat-treated alloy steel
PISTON Race-developed high-flow piston design
VALVING Application specific valving to maximize performance
SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
BEARINGS Large diameter, heavy-duty spherical
EXTENDED LENGTH 20.86
COMPRESSED LENGTH 15.46
TOP MOUNT TM

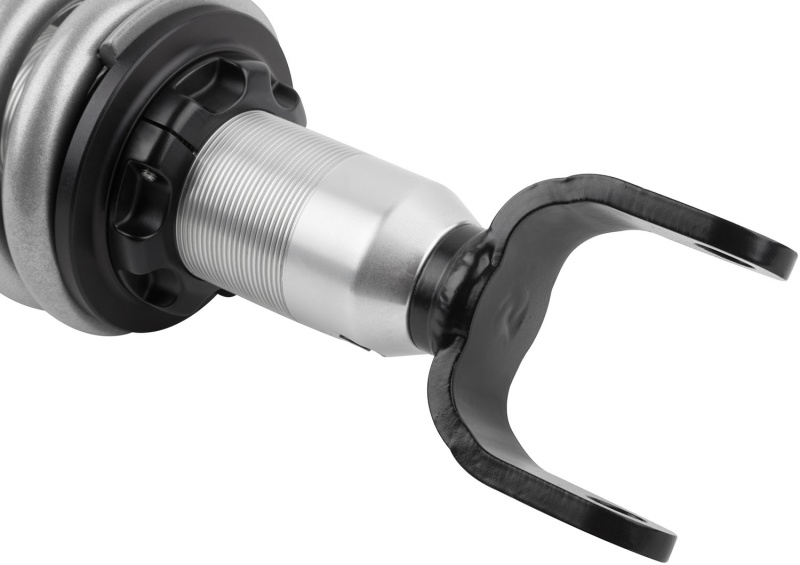

BOTTOM MOUNT Clevis
FITMENT NOTES Does Not Fit Air Ride Models

Ram 1500 Big Horn 2019 to 2024
Ram 1500 HFE 2019 to 2024
Ram 1500 Laramie 2019 to 2024
Ram 1500 Laramie Longhorn 2019 to 2021
Ram 1500 Limited 2019 to 2024
Ram 1500 Limited Longhorn 2021 to 2024
Ram 1500 Lone Star 2019 to 2024
Ram 1500 Longhorn 2021
Ram 1500 Rebel 2019 to 2024
Ram 1500 Special Service 2020 to 2022
Ram 1500 Tradesman 2019 to 2024
Ram 1500 TRX 2021 to 2024

Part number
985-02-136
Brand
Dimensions
29.3 × 6.2 × 6.1 in
Weight
22.3 lbs

Fox 19+ Ram 1500 4WD 2.0 Performance Series IFP Coilover Shock (Alum) / 0-2in. Lift

Fitment:
Ram 1500 Big Horn 2019 to 2024
Ram 1500 HFE 2019 to 2024
Ram 1500 Laramie 2019 to 2024
Ram 1500 Laramie Longhorn 2019 to 2021
Ram 1500 Limited 2019 to 2024
Ram 1500 Limited Longhorn 2021 to 2024
Ram 1500 Lone Star 2019 to 2024
Ram 1500 Longhorn 2021
Ram 1500 Rebel 2019 to 2024
Ram 1500 Special Service 2020 to 2022
Ram 1500 Tradesman 2019 to 2024
Ram 1500 TRX 2021 to 2024
