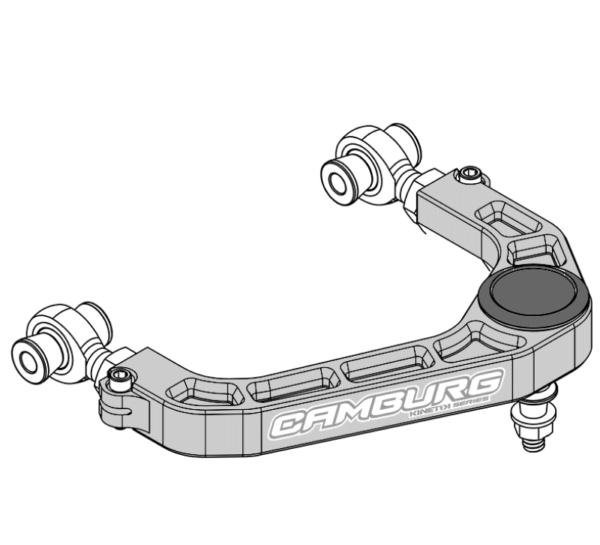

Introducing the Camburg KINETIK Series billet upper control arms for 2021-2024 Ford F-150’s. These arms are meticulously designed and crafted from aerospace quality 6061 billet aluminum, providing superior strength and durability. They feature a larger FK 1.25″ uniball with a PTFE liner for increased strength and misalignment, allowing for maximum wheel travel. The uniball is securely adapted to the spindle/knuckle using model-specific spacers made from heat-treated stainless steel. The arms also utilize FK 7/8″ chromoly heim joints for additional camber and caster adjustment, eliminating flexing and deflection under hard use. The arms come with AN/Mil-spec hardware, including a single pinch bolt and secondary jam nut for secure installation. The new V2 design increases usable wheel travel, corrects camber and caster, and eliminates weak factory ball-joints. These arms are compatible with 1-3″ of lift and are not compatible with vehicles equipped with Continuously Controlled Damping (CCD) adaptive suspension or adaptive headlamps with a position sensor attached to the OEM upper control arm.
Camburg Ford F-150 2wd/4wd ’21-23 KINETIK V2 Performance Billet Uniball Upper Arms
Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.
Fitment:
Ford F-150 King Ranch 2021 to 2024
Ford F-150 Lariat 2021 to 2024
Ford F-150 Limited 2021 to 2023
Ford F-150 Platinum 2021 to 2024
Ford F-150 Police Responder 2021 to 2024
Ford F-150 SSV 2021 to 2024
Ford F-150 Tremor 2021 to 2024
Ford F-150 XL 2021 to 2024
Ford F-150 XLT 2021 to 2024
