SKU: 677803

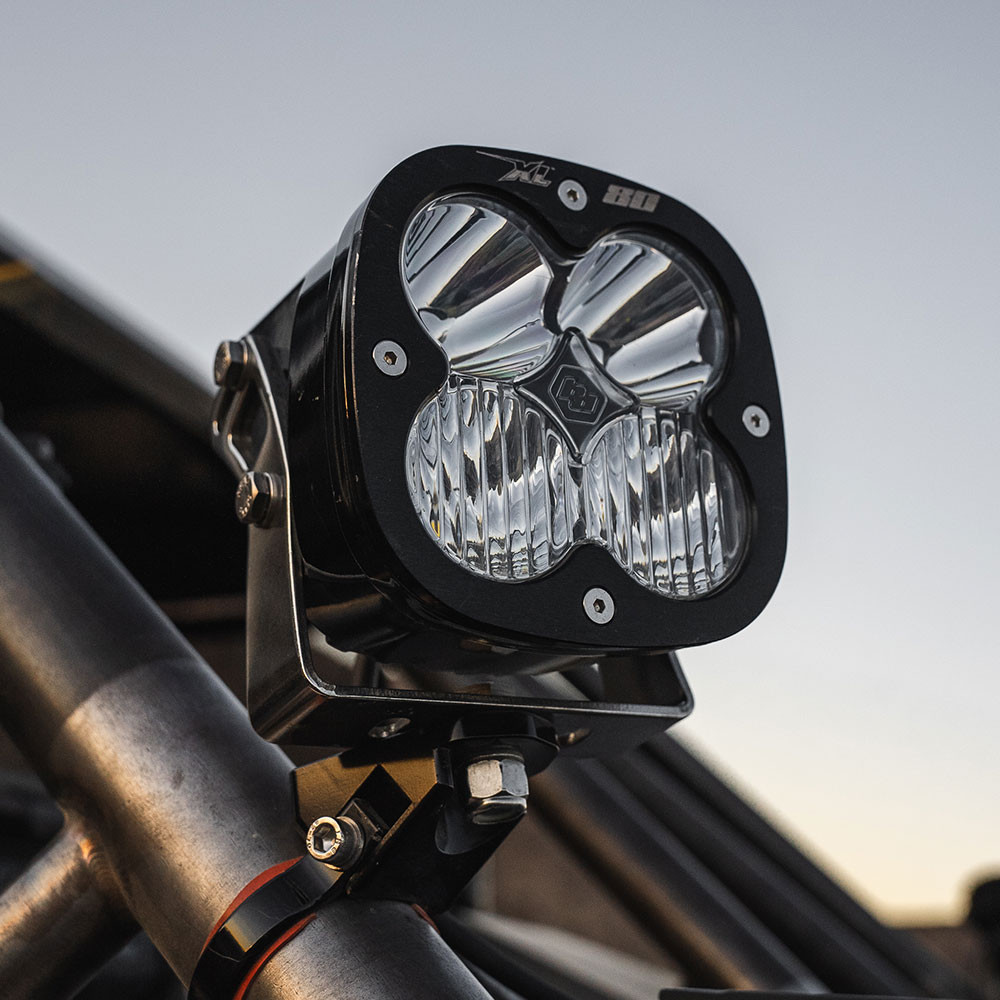

The Baja Designs XL80 auxiliary LED light pair elevates your off-road lighting with superior visibility and brightness. Equipped with our trademarked high-speed spot reflectors, the XL80 delivers a longer and wider beam pattern. Utilizing next-generation LED technology, it offers 18% greater distance and increased intensity compared to our previous model, pushing an impressive 9,022 raw lumens per light. This makes it perfect for any off-road vehicle, including trucks, vans, UTVs, and motorcycles.

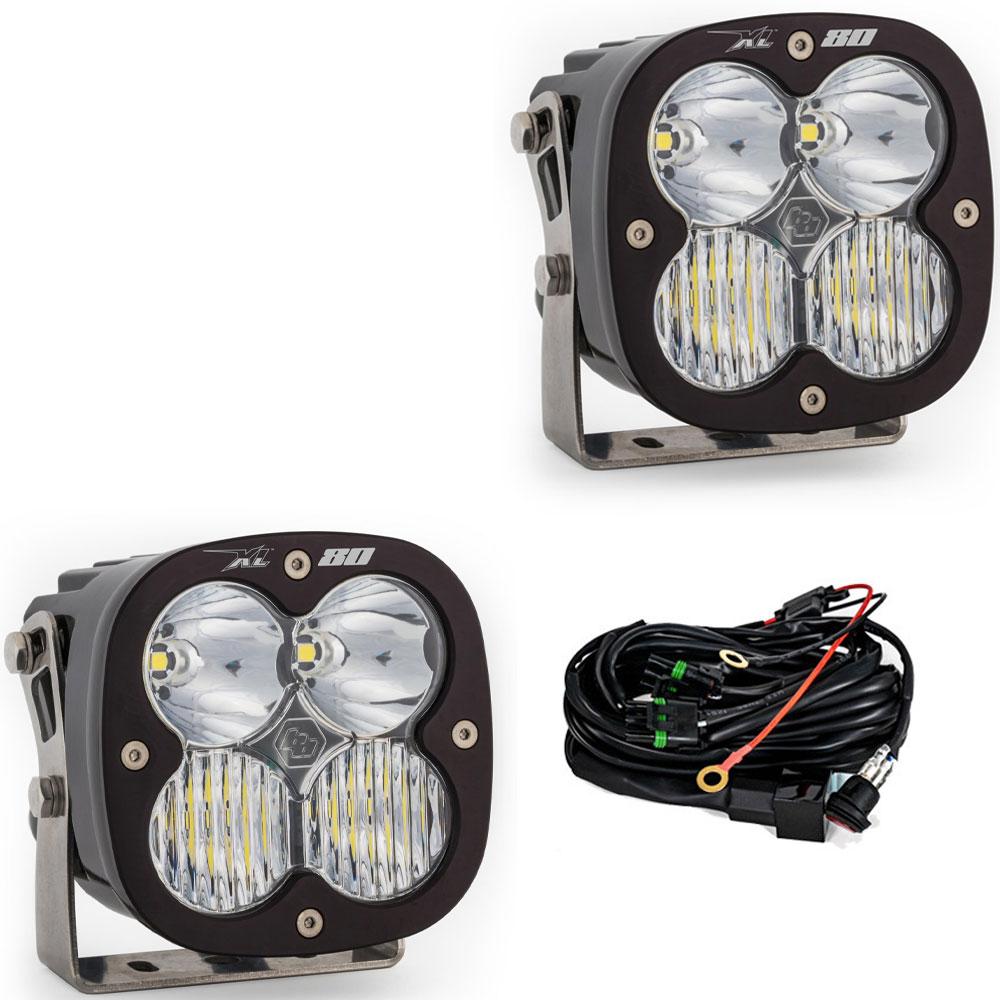

Similar to the XL Pro model, the XL80 features a 20% dimming option, a powder-coated housing, and an anodized bezel. This two-light kit includes a wiring harness and all necessary mounting hardware, ensuring quick and easy installation. Designed for those seeking reliable off-road lighting solutions, all Baja Designs lights are backed by a 30-day satisfaction guarantee and a limited lifetime warranty for the ultimate in purchase protection.
ELS™ Scores:
Click to learn more about our Effective Lighting Score (ELS)

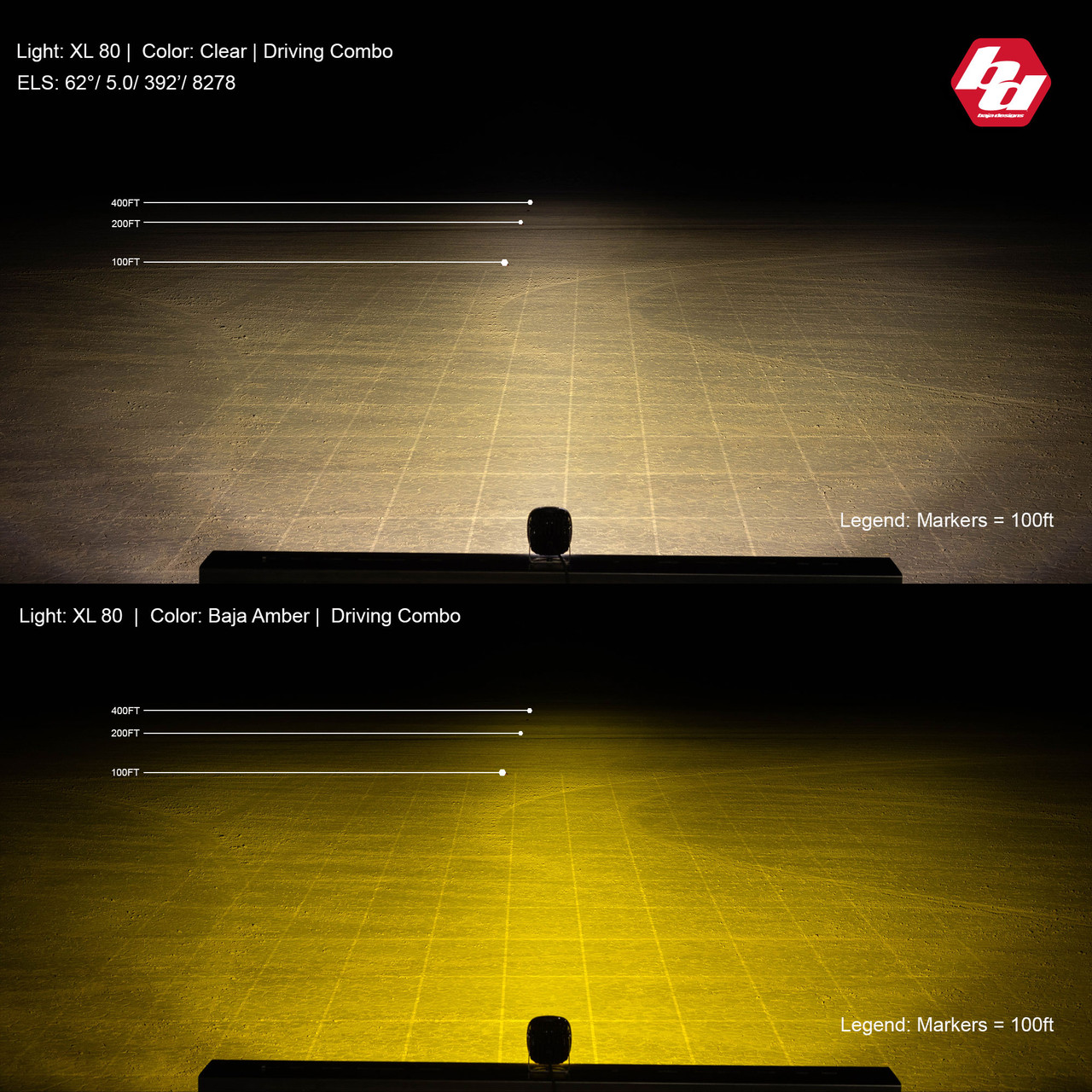

XL80 Driving Combo (Clear): ELS 62°/ 5.0/ 392’/ 8278
XL80 Wide Cornering (Clear): ELS 66⁰/ 6.1/ 202’/ 8063
Lens Pattern Options:
Driving Combo: The driving combo pattern offers maximum trail coverage in a single light. It combines both driving and spot optics to deliver a smooth blend of light for near-field applications in lighting zones 1 and 2, as well as distance illumination in zone 3. This pattern is perfect for those who need versatile lighting that covers both close and far distances.
Wide Cornering: The wide cornering pattern provides a 42-degree flattened horizontal beam, enhancing peripheral visibility and reducing blind spots in lighting zones 1 and 2. This pattern is ideal for navigating through tight turns, winding trails, or wooded areas. It excels in inclement weather conditions such as dust, snow, rain, or fog, making it easier to see obstacles, trail conditions, and potential hazards.
Lens Color:
Clear: The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
Baja Amber:This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Dimensions
| Depth (in.) | 3.650 |
| Height (in.) | 4.430 |
| Length (in.) | 4.430 |
| Weight (lbs.) | 2.450 |
Specifications
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 9022 |
| Description | Driving/Combo; Clear; Pair |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 2 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL80 LED Light Pod Pair w/ Wiring Harness |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Wiring Harness Included | Yes |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
